Product Overview:

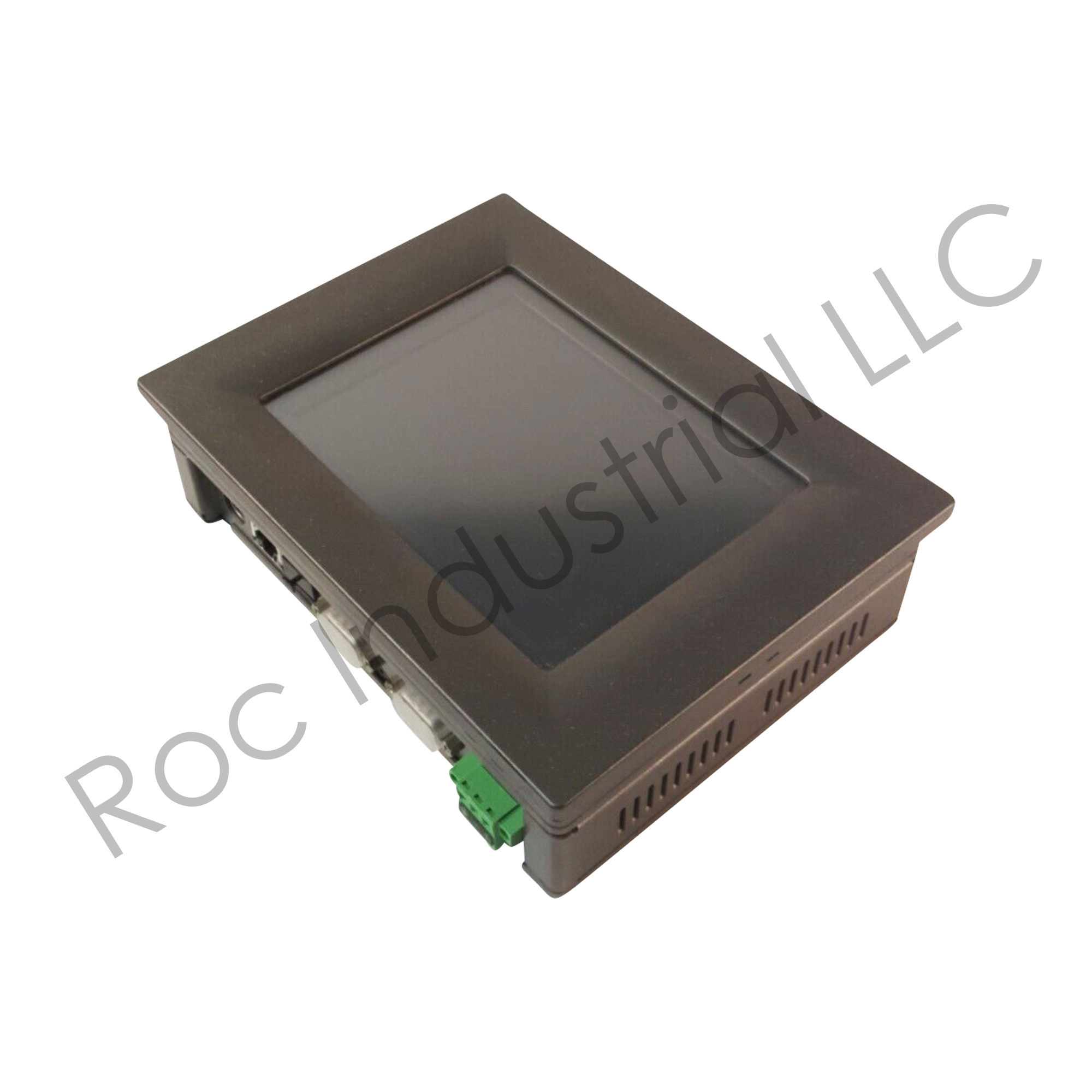

The Advantech TPC-650H-N2AE is a robust, high-performance 5.7-inch fanless touch panel PC designed for demanding industrial environments. Engineered with an Intel Atom N2600 dual-core processor, this compact HMI (Human Machine Interface) solution delivers efficient computing power with ultra-low power consumption, making it ideal for a wide range of embedded applications. Its fanless design ensures silent operation, enhanced reliability, and reduced maintenance by eliminating moving parts, making it perfectly suited for dusty, harsh, or noise-sensitive settings. Featuring a durable resistive touchscreen and an IP65-rated front panel, the TPC-650H-N2AE offers superior protection against water and dust ingress, ensuring consistent performance and longevity in challenging industrial automation, factory control, and process monitoring scenarios. This versatile panel PC provides a comprehensive set of I/O ports for seamless integration with existing systems and peripherals, offering a reliable and cost-effective solution for modern industrial control and data visualization needs.
Technical Specifications:
- Part Number: TPC-650H-N2AE
- Alternative Part Number: TPC650HN2AE
- Display Size: 5.7 inches
- Display Type: SVGA TFT LCD
- Resolution: 800 x 600 pixels
- Brightness: 450 cd/m²
- Backlight Life: 50,000 hours
- Processor: Intel Atom N2600 1.6 GHz Dual-Core
- System Memory: Up to 2GB DDR3 SO-DIMM (1 x 204-pin slot)
- Storage: 1 x CFast slot, 1 x mSATA slot
- Ethernet: 2 x 10/100/1000 Mbps LAN (RJ-45)
- USB Ports: 3 x USB 2.0
- Serial Ports: 2 x RS-232, 1 x RS-232/422/485 (selectable via BIOS)
- Video Output: 1 x VGA
- Audio: Line-out
- Touchscreen Type: 5-wire Resistive
- Power Input: 12V DC (via 2-pin terminal block)
- Power Consumption: Typically 15W
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 10% to 95% RH @ 40°C, non-condensing
- Vibration Resistance: 1 Grms (5-500 Hz, random, operating)
- Shock Resistance: 10 G (half-sine, 11 ms, operating)
- Front Panel Protection: IP65 compliant
- Mounting Options: Panel Mount, VESA Mount (75 x 75 mm)
- Chassis Material: Aluminum Die-Cast
- Dimensions (W x H x D): 185.6 x 140.2 x 44.5 mm (7.31" x 5.52" x 1.75")
- Weight: 1.5 kg (3.3 lbs)
- Certifications: CE, FCC Class A, UL/cUL, CCC, BSMI
ADVANTECH TPC-650H-N2AE
