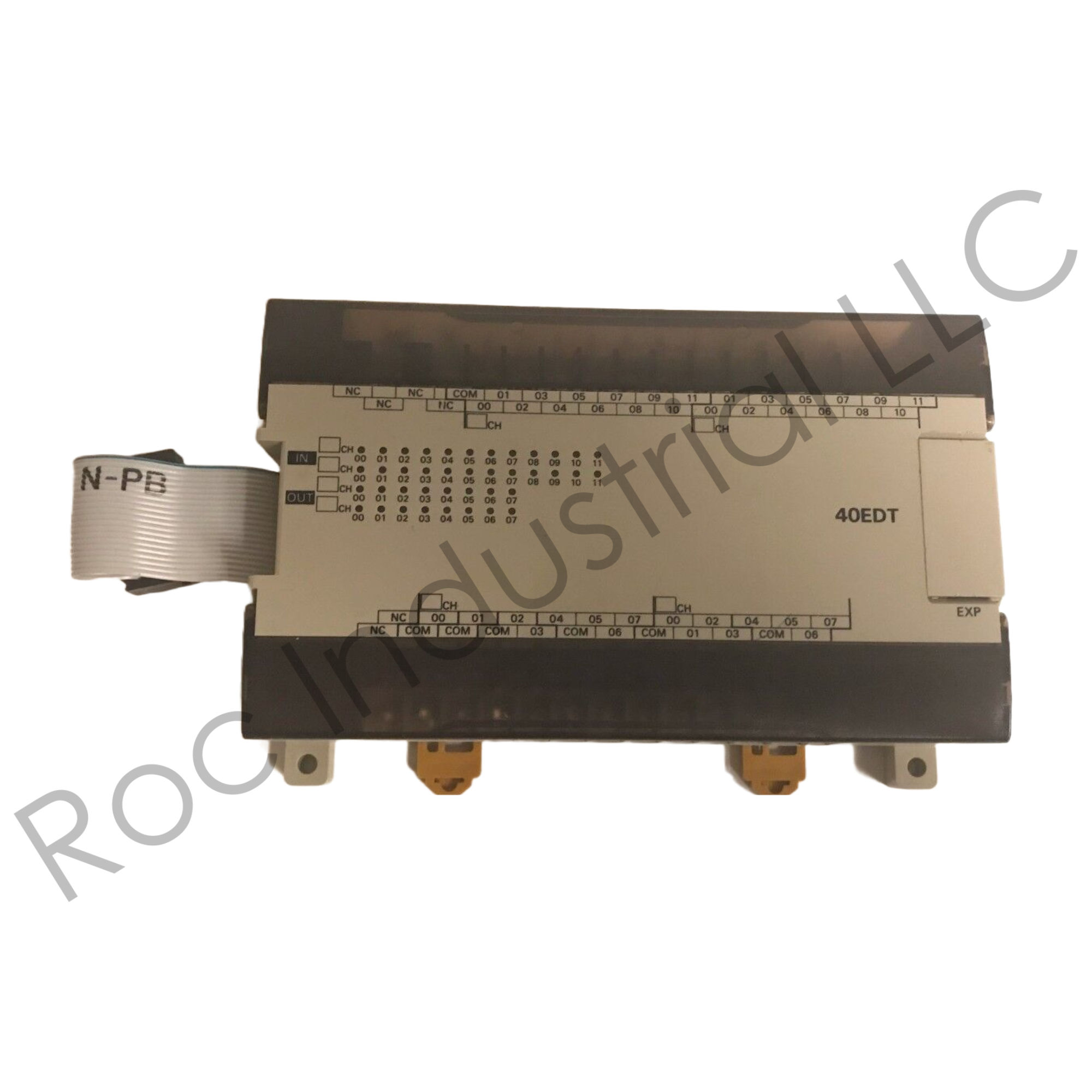

Title: OMRON CPM1A-40EDT Compact PLC | 40 I/O Transistor Output CPU Unit for Industrial Automation

Product Overview:
The OMRON CPM1A-40EDT is a highly reliable and versatile compact Programmable Logic Controller (PLC) designed to deliver efficient and precise control for a wide range of small to medium-scale industrial automation applications. As a core CPU unit within the renowned CPM1A series, this powerful PLC integrates 40 input/output points, featuring 24 DC inputs and 16 high-speed transistor outputs, making it ideal for controlling devices requiring rapid switching and precise positioning. Engineered for robust performance in demanding industrial environments, the CPM1A-40EDT offers a cost-effective solution for machine builders, system integrators, and manufacturing facilities seeking dependable automation. Its compact footprint saves valuable panel space, while its advanced features ensure seamless integration and superior operational efficiency for your automated processes.

Key Features & Benefits:

 Integrated 40 I/O Points: Provides comprehensive control with 24 DC inputs and 16 transistor outputs, suitable for diverse automation tasks.
 High-Speed Transistor Outputs: Enables fast and precise control of loads such as solenoids, relays, motor starters, and stepper motors, ideal for applications requiring rapid response times.
 Compact and Space-Saving Design: Optimizes panel space, reducing the overall footprint of your control system.
 Robust Industrial Performance: Built to withstand harsh industrial conditions, ensuring long-term reliability and minimal downtime.
 Fast Processing Speed: Delivers quick program execution for real-time control and improved machine throughput.
 Flexible Programming: Easily programmable using Omron's intuitive CX-Programmer software, supporting ladder logic for straightforward development and debugging.
 Built-in Communication Port: Features an integrated RS-232C serial port for seamless connectivity with HMIs, programming devices, and other network components.
 High-Speed Counter Functions: Supports multiple high-speed counter inputs for precise measurement and control of rotational or linear motion.
 Pulse Output Capabilities: Offers dedicated pulse outputs for accurate positioning control of servo or stepper drives.
 Expandable Architecture: Compatible with CPM1A series expansion units, allowing for future system growth and increased I/O capacity as your application demands evolve.
 Cost-Effective Automation Solution: Delivers high performance and reliability at an economical price point, maximizing your return on investment.

Applications:

The OMRON CPM1A-40EDT is an excellent choice for automating various industrial processes and machinery, including:
 Packaging machinery (e.g., filling, sealing, labeling)
 Material handling systems (e.g., conveyors, sorters)
 Small to medium-sized manufacturing machines
 Textile machinery
 Food and beverage processing equipment
 Automated assembly lines
 HVAC and building automation systems
 Water treatment and pumping stations
 Automated test and inspection equipment
 Simple robotics and pick-and-place applications

Technical Specifications:

 Model: CPM1A-40EDT
 Part Number: CPM1A-40EDT
 Alternate Part Number: CPM1A40EDT
 I/O Points: 40 (24 Inputs, 16 Outputs)
 Input Type: DC (e.g., 24VDC)
 Output Type: Transistor (NPN)
 Output Current: 0.3A per point (max.)
 Power Supply: 100-240 VAC, 50/60 Hz
 Program Capacity: 2K words (2000 steps)
 Data Memory: 1K words (1000 words)
 Programming Language: Ladder Diagram
 Communication Port: RS-232C (DB9 connector)
 High-Speed Counters: Up to 2 channels, 10 kHz
 Pulse Outputs: Up to 2 channels, 10 kHz
 Dimensions (H x W x D): Approximately 90 mm x 130 mm x 85 mm (3.54 in x 5.12 in x 3.35 in)
 Weight: 0.9 kg (1.98 lbs)
 Operating Temperature: 0 to 55°C (32 to 131°F)
 Storage Temperature: -20 to 75°C (-4 to 167°F)
 Humidity: 10 to 90% RH (non-condensing)
 Certifications: CE, UL, cUL
