Product Overview:
The Siemens TDS 120A2,5Z is a robust and highly reliable circuit breaker engineered to deliver superior electrical protection in demanding industrial, commercial, and specialized applications. As part of Siemens' esteemed portfolio of electrical components, this breaker is designed to safeguard critical equipment and systems from the damaging effects of overcurrents and short circuits. Featuring a specialized Z-curve tripping characteristic, it is ideally suited for circuits with high inrush currents, such as those connected to transformers, solenoids, and specific motor loads, ensuring precise and immediate disconnection when faults occur. Its durable construction and adherence to international safety standards make it an indispensable component for maintaining operational continuity and enhancing overall electrical safety within complex power distribution networks. Invest in Siemens quality for unparalleled performance and peace of mind.
Technical Specifications:
- Part Number (with special characters): SIEMENS-TDS-120A2.5Z
- Part Number (without special characters): SIEMENSTDS120A25Z
- Rated Current: 120 A
- Rated Voltage: 230/400 V AC
- Number of Poles: 3-Pole
- Tripping Characteristic: Z-Curve
- Rated Breaking Capacity: 25 kA at 400 V AC
- Frequency: 50/60 Hz
- Mounting Type: DIN Rail (EN 60715)
- Terminal Type: Screw Terminals
- Operating Temperature Range: -25°C to +55°C
- Storage Temperature Range: -40°C to +70°C
- Protection Degree: IP20 (Terminals), IP40 (Enclosure, with cover)
- Mechanical Endurance: 10,000 operating cycles
- Electrical Endurance: 4,000 operating cycles
- Dimensions (H x W x D): 130 mm x 75 mm x 90 mm (approximate)
- Weight: 0.85 kg
- Standards: IEC 60947-2, EN 60947-2, UL 489 (where applicable)

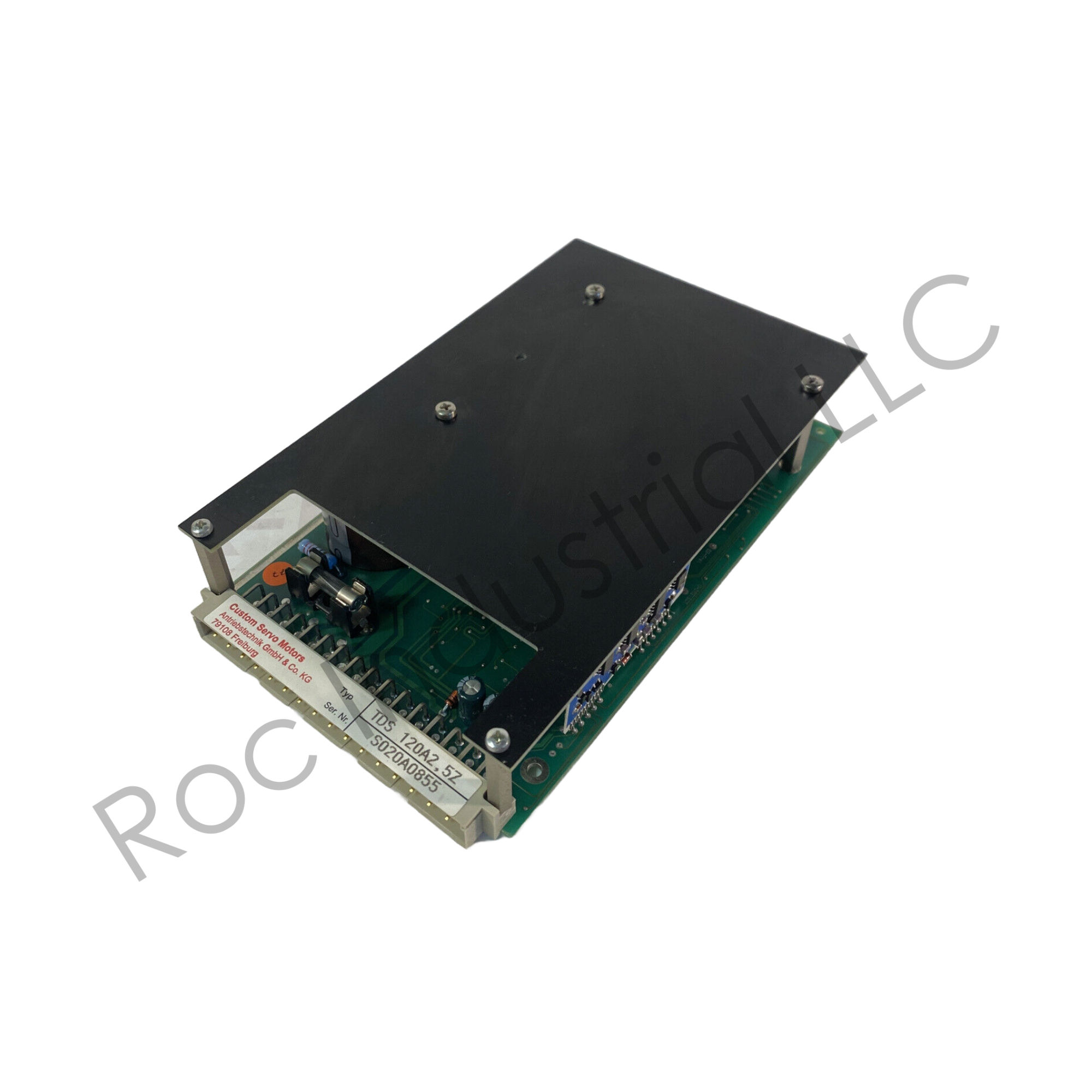

SIEMENS TDS-120A2.5Z
