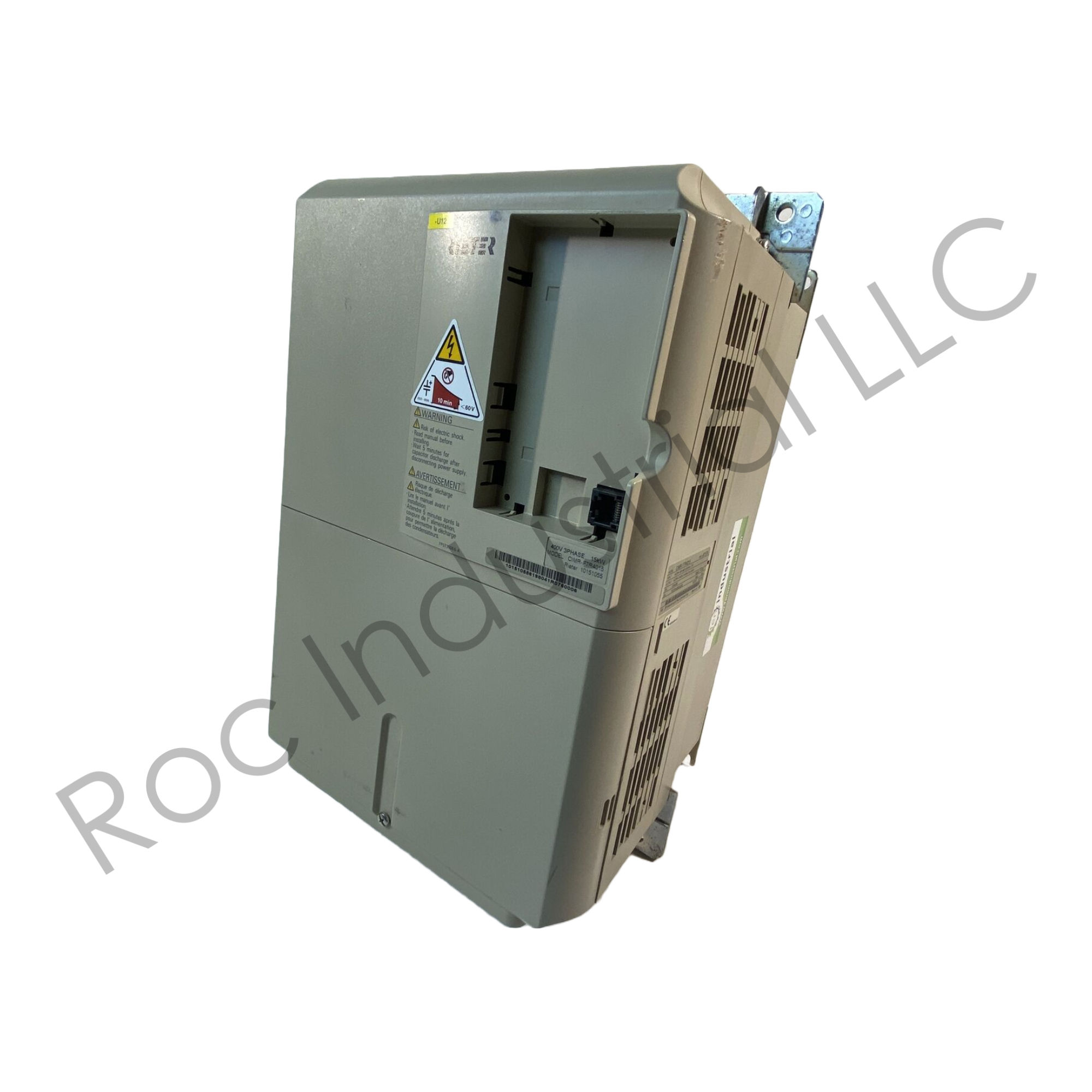

Title: Yaskawa CIMR-F7R4015 F7 Series AC Drive - 15kW, 400V High Performance Variable Frequency Drive

Product Overview:
The Yaskawa CIMR-F7R4015 is a robust and highly efficient AC drive from the renowned F7 series, engineered to deliver superior performance and reliability in demanding industrial applications. This 15kW (20 HP), 400V class variable frequency drive (VFD) is designed for precise motor control, offering exceptional energy savings and enhanced operational stability for a wide range of machinery. With its advanced vector control technology, the CIMR-F7R4015 ensures optimal speed and torque regulation, making it an ideal solution for complex industrial processes requiring high precision and dynamic response. Its durable construction and comprehensive protective features guarantee long-term, trouble-free operation, contributing significantly to reduced downtime and maintenance costs in your facility.

Key Features & Benefits:

 High Performance Vector Control: Provides precise speed and torque control for both induction and permanent magnet motors, ensuring optimal process accuracy and efficiency.
 Energy Saving Functions: Incorporates advanced algorithms to minimize energy consumption, reducing operational costs and supporting sustainable industrial practices.
 Robust Design & Reliability: Built with high-quality components and a durable enclosure, designed for extended lifespan and reliable operation in harsh industrial environments.
 Wide Power Range: Rated for 15 kW (20 HP) output power, suitable for a broad spectrum of medium-duty industrial motor applications.
 Flexible Control Modes: Supports V/f control, open-loop vector control, and optional closed-loop vector control for versatile application integration.
 Comprehensive Protection Features: Includes built-in safeguards against overcurrent, overvoltage, undervoltage, motor overload, overheating, and ground faults, ensuring drive and motor longevity.
 User-Friendly Interface: Features an intuitive LCD operator with easy programming and monitoring capabilities, simplifying setup and diagnostics.
 Integrated Communication: Equipped with RS-422/485 (Modbus RTU) for seamless integration into existing control systems, with options for various industrial network protocols.
 Global Compliance: Meets international standards such as CE, UL, and cUL, ensuring suitability for worldwide deployment.
 Removable Terminal Block: Facilitates quick and easy wiring, reducing installation and maintenance time.

Applications:

The Yaskawa CIMR-F7R4015 is a versatile drive suitable for a multitude of industrial applications where precise motor control, energy efficiency, and reliability are paramount.
 Pumps: Optimized control for centrifugal, positive displacement, and submersible pumps in water treatment, HVAC, and industrial fluid handling.
 Fans: Efficient operation of industrial fans, blowers, and ventilation systems, reducing energy consumption in HVAC and process air applications.
 Conveyors: Smooth acceleration and deceleration for various conveyor systems, improving material handling efficiency and reducing mechanical stress.
 Compressors: Enhanced control for air and gas compressors, leading to energy savings and extended equipment life.
 Machine Tools: Precise speed and torque control for spindles and axes in milling, turning, and grinding machines.
 Cranes and Hoists: Provides accurate lifting and lowering control, ensuring safety and efficiency in material handling.
 Textile Machinery: Delivers stable and precise control for spinning, weaving, and finishing processes.
 Food and Beverage Processing: Reliable operation for mixers, blenders, and other processing equipment, meeting stringent hygiene and performance requirements.
 General Industrial Machinery: Ideal for any application requiring high-performance motor control, including mixers, extruders, and packaging equipment.

Technical Specifications:

 Part Number: CIMR-F7R4015
 Alternative Part Number: CIMRF7R4015
 Input Voltage: 3-Phase, 380-480 VAC, 50/60 Hz
 Output Voltage: 3-Phase, 0 to Input Voltage
 Rated Output Power: 15 kW (20 HP)
 Rated Output Current: 32 A
 Overload Capacity: 150% for 60 seconds, 200% for 0.5 seconds
 Control Method: V/f Control, Open Loop Vector Control, Closed Loop Vector Control (with optional encoder)
 Output Frequency Range: 0.01 to 400 Hz
 Protection Features: Overcurrent, Overvoltage, Undervoltage, Overheat, Motor Overload, Ground Fault, Short Circuit
 Communication Interface: RS-422/485 (Modbus RTU) standard; optional network cards available for Profibus, DeviceNet, Ethernet/IP, etc.
 Enclosure Rating: IP20
 Operating Temperature: -10°C to +50°C (14°F to 122°F)
 Dimensions (HxWxD): Approximately 360 mm x 180 mm x 220 mm (14.17 in x 7.09 in x 8.66 in)
 Weight: 12 kg (26.46 lbs)
