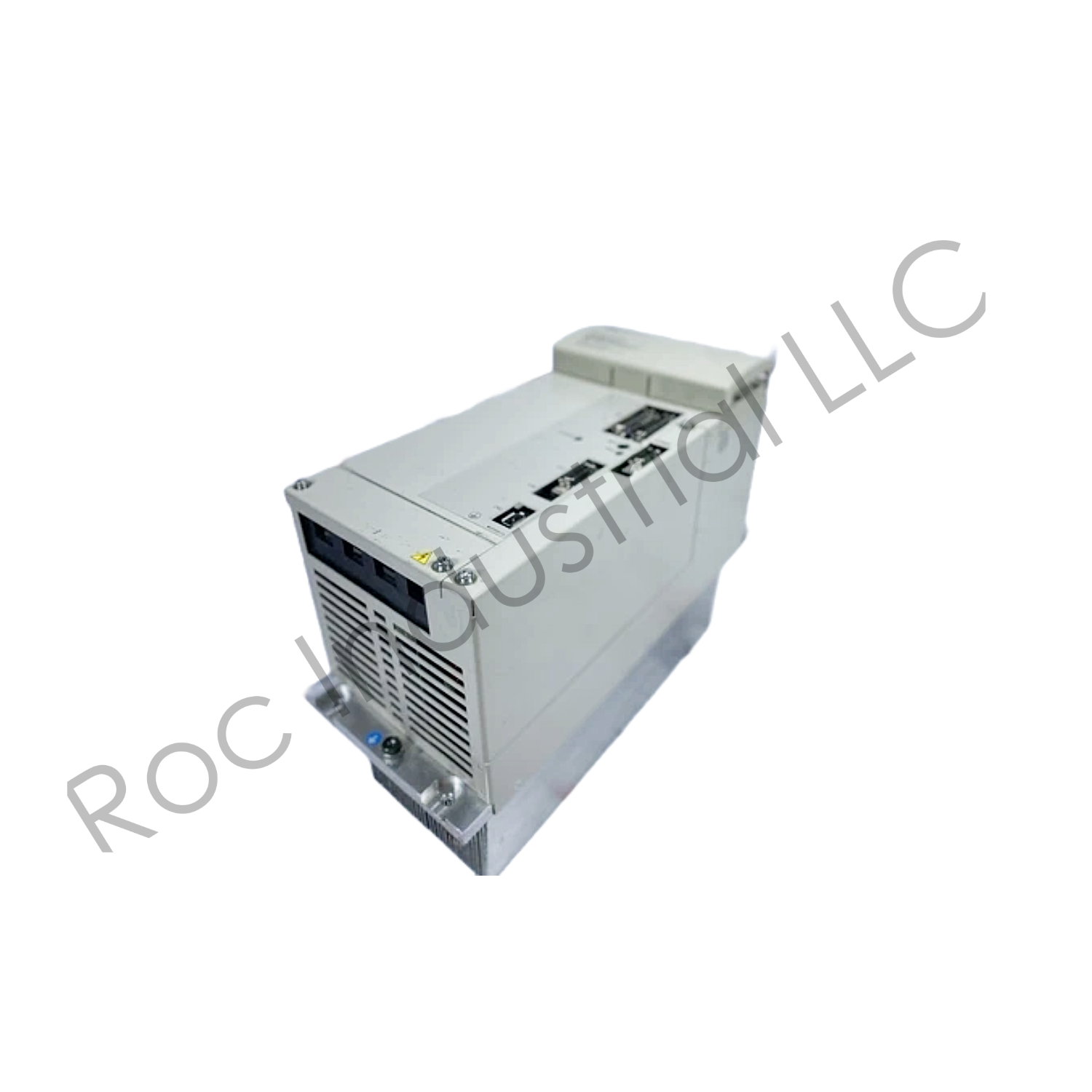

Title: Yaskawa CIMR-MXN2030 AC Drive - 3.0 kW (4 HP) 200-240V 3-Phase VFD

Product Overview:
The Yaskawa CIMR-MXN2030 is a high-performance, compact variable frequency drive (VFD) engineered for precise and efficient motor control in a wide array of industrial applications. As part of Yaskawa's renowned MX2 series, this 3.0 kW (4 HP) 200-240V 3-phase inverter delivers exceptional reliability, energy savings, and advanced control capabilities in a space-saving design. Ideal for demanding environments, the CIMR-MXN2030 provides robust performance for applications ranging from general machinery to sophisticated material handling systems, ensuring optimal operational efficiency and reduced energy consumption. Its user-friendly interface and comprehensive feature set make it a versatile solution for modern automation needs, contributing to enhanced productivity and lower operating costs.

Key Features & Benefits:

 Powerful Performance: Rated for 3.0 kW (4 HP) motor control, providing ample power for various industrial loads.
 Versatile Voltage Compatibility: Operates on 3-phase 200-240 VAC input, suitable for common industrial power supplies.
 Advanced Control Modes: Supports V/f control, Open Loop Vector control, and PM motor control for precise speed and torque regulation.
 Compact Design: Space-efficient footprint allows for easy integration into control panels and machinery, optimizing cabinet space.
 Energy Efficiency: Advanced motor control algorithms significantly reduce energy consumption, leading to substantial cost savings.
 Built-in Braking Transistor: Integrated braking chopper for dynamic braking, enhancing safety and control during deceleration (for models up to 15kW).
 Integrated Safety Features: Includes Safe Torque Off (STO) functionality, compliant with EN ISO 13849-1 Cat. 3 / PLd and IEC/EN 61508 SIL2, for enhanced machine safety.
 Flexible Communication: Equipped with built-in RS-485 (Modbus RTU) for seamless integration into existing control networks.
 User-Friendly Interface: Intuitive programming and setup via a removable keypad, simplifying commissioning and maintenance.
 Robust Construction: Designed for industrial environments, ensuring long-term reliability and durability even in harsh conditions.
 PID Control Function: Integrated Proportional-Integral-Derivative (PID) control for process automation, such as maintaining constant pressure or flow.
 Overload Capacity: Capable of handling 150% overload for 60 seconds and 200% for 0.5 seconds, providing resilience against transient loads.

Applications:

 HVAC Systems: Fans, blowers, and pumps for climate control and air handling units.
 Material Handling: Conveyors, small hoists, and automated guided vehicles (AGVs).
 Packaging Machinery: Wrappers, sealers, labelers, and filling machines.
 Food and Beverage Processing: Mixers, blenders, pumps, and processing lines.
 Textile Machinery: Weaving machines, spinning frames, and dyeing equipment.
 General Industrial Machinery: Machine tools, woodworking machinery, and small presses.
 Water and Wastewater Treatment: Dosing pumps, circulation pumps, and aeration systems.

Technical Specifications:

 Model: CIMR-MXN2030
 Part Number (with special characters): CIMR-MXN2030
 Part Number (without special characters): CIMRMXN2030
 Input Voltage: 3-Phase, 200-240 VAC, 50/60 Hz
 Output Voltage: 3-Phase, 0-240 VAC
 Rated Motor Power: 3.0 kW (4 HP)
 Rated Output Current: 14.0 A
 Overload Capacity: 150% for 60 seconds, 200% for 0.5 seconds
 Control Method: V/f control, Open Loop Vector control, PM motor control
 Output Frequency Range: 0.01 to 400 Hz
 Digital Inputs: 5 (programmable)
 Analog Inputs: 2 (1 voltage, 1 current/voltage selectable)
 Digital Outputs: 2 (1 relay, 1 transistor)
 Analog Outputs: 1 (voltage/current selectable)
 Communication Interface: RS-485 (Modbus RTU) built-in
 Protective Functions: Overcurrent, Overvoltage, Undervoltage, Overheat, Motor Overload, Ground Fault, Short Circuit
 Enclosure Rating: IP20
 Operating Temperature: -10°C to +50°C (14°F to 122°F)
 Dimensions (H x W x D): 150 mm x 80 mm x 130 mm (5.91 in x 3.15 in x 5.12 in)
 Weight: 1.0 kg (2.2 lbs)
 Certifications: CE, UL, cUL, RoHS
